Bandes lumineuses LED SMD — 1 SDCM, 48V, Marine | DENO

La série de rubans LED SMD DENO utilise des boîtiers LED à montage en surface (2835, 3528, 3014, 5050, 2216, 1808) sur FPCB en cuivre électrolytique R2R. 28 sous-séries spécialisées couvrent la cohérence des couleurs 1 SDCM, ConfiguraBright tunable, Dim-to-Warm, Spectre Complet CRI 98, Ultra-Long 48V, Marine IP68, Automobile 12V, PCB Large 20mm et variantes flexibles en S — toutes couvertes par une garantie de 5 ans.

Bande LED SMD models & key specifications (60)

48V Bande LED SMD Models (4)

16785 — 2835 · 192 LEDs/m · 48V

16785 Bande LED SMD — 48V, cuttable every 125mm, 10mm FPCB width, 2835 LEDs, 192 LEDs/m, IP20/IP54/IP65/IP66/IP67/IP68

LED Type: 2835 · LED Density: 192 · CRI: Ra≥90 / Ra≥95 · Voltage: DC48V · Power: 9.6~38.4W · Cutting Unit: 24LEDs/125mm · PCB Width: 10mm · Copper Foil: 3oz · Circuit Type: CV · IP Rating: IP20/IP54/IP65/IP66/IP67/IP68

15926-N — 2216 · 300 LEDs/m · 48V

15926-N Bande LED SMD — 48V, cuttable every 50mm, 10mm FPCB width, 2216 LEDs, 300 LEDs/m, 1800–6500K

LED Type: 2216 · LED Density: 300 LEDs/m · CCT: 1800–6500K · CRI: FS / Ra≥90 · Voltage: 48V · Power: 4.8~19.2W · Cutting Unit: 15LEDs/50mm · PCB Width: 10mm · Copper Foil: 3oz · Circuit Type: C.V. · IP Rating: IP20/IP54/IP65/IP66/IP67/IP68

16786 — 2835+2216 · 224 LEDs/m · 48V

16786 Bande LED SMD — 48V, cuttable every 125mm, 10mm FPCB width, 2835+2216 LEDs, 224 LEDs/m, IP20/IP54/IP65/IP66/IP67/IP68

LED Type: 2835+2216 · LED Density: 224 · CRI: Ra≥90 / Ra≥95 · Voltage: DC48V · Power: 9.6~38.4W · Cutting Unit: 28LEDs/125mm · PCB Width: 10 · Copper Foil: 3oz · Circuit Type: CV · IP Rating: IP20/IP54/IP65/IP66/IP67/IP68

18084 — 2835 · 240 LEDs/m · 48V

18084 Bande LED SMD — 48V, cuttable every 100mm, 10mm FPCB width, 2835 LEDs, 240 LEDs/m, IP20

LED Type: 2835 · LED Density: 240 · Voltage: DC 48V · Power: 4.8~28.8W · Cutting Unit: 24LEDs/100mm · PCB Width: 10mm · Copper Foil: 3oz · Circuit Type: CV · IP Rating: IP20

36V Bande LED SMD Models (1)

63850 — 2835 · 90 LEDs/m · 36V

63850 Bande LED SMD — 36V, cuttable every 100mm, 10mm FPCB width, 2835 LEDs, 90 LEDs/m, IP20

LED Type: 2835 · LED Density: 90LEDs/m · Voltage: DC 36V · Cutting Unit: 9LEDs/100mm · PCB Width: 10 mm · Copper Foil: 3oz · Circuit Type: C.C. · IP Rating: IP20

24V Bande LED SMD Models (51)

16947 — 2835 · 160 LEDs/m · 24V

16947 Bande LED SMD — 24V, cuttable every 50mm, 10mm FPCB width, 2835 LEDs, 160 LEDs/m, IP20

LED Type: 2835 · LED Density: 160 · Voltage: 24V · Power: 2.4~24W · Cutting Unit: 8LEDs/50mm · PCB Width: 10mm · Copper Foil: 3 oz · Circuit Type: CC · IP Rating: IP20

1688 PU — 2216 · 300 LEDs/m · 24V

1688 PU Bande LED SMD — 24V, cuttable every 20mm, 12mm FPCB width, 2216 LEDs, 300 LEDs/m, 1800–6500K

LED Type: 2216 · LED Density: 300 LEDs/m · CCT: 1800–6500K · CRI: Ra≥90 · Voltage: 24V · Power: 6~24W · Cutting Unit: 6LEDs/20mm · PCB Width: 12mm · Copper Foil: 3oz · Circuit Type: C.V. · IP Rating: IP20/IP65/IP67/IP68

5493 — 2835 · 288 LEDs/m · 24V

5493 Bande LED SMD — 24V, cuttable every 55.6mm, 12mm FPCB width, 2835 LEDs, 288 LEDs/m, IP20

LED Type: 2835 · LED Density: 288 · Voltage: 24V · Power: 12~28.8W · Cutting Unit: 16LEDs/55.55mm · PCB Width: 12 · Copper Foil: 3oz · Circuit Type: CV · IP Rating: IP20

2065 — 2835 · 120 LEDs/m · 24V

2065 Bande LED SMD — 24V, cuttable every 16.7mm, 10mm FPCB width, 2835 LEDs, 120 LEDs/m, IP20

LED Type: 2835 · LED Density: 120LEDs/m · Voltage: DC 24V · Power: 7.2~24W · Cutting Unit: 2LEDs/16.66mm · PCB Width: 10 mm · Copper Foil: 3oz · Circuit Type: CV · IP Rating: IP20

3406 — 5630 · 112 LEDs/m · 24V

3406 Bande LED SMD — 24V, cuttable every 125mm, 10mm FPCB width, 5630 LEDs, 112 LEDs/m, 2700–6500K

LED Type: 5630 · LED Density: 112 · CCT: 2700–6500K · CRI: Ra≥80 · Voltage: 24V · Power: 12~24W · Cutting Unit: 14LEDs/125mm · PCB Width: 10 · Copper Foil: 3oz · Circuit Type: CV · IP Rating: IP20/IP65/IP67/IP68

7909-B — 2835 · 120 LEDs/m · 24V

7909-B Bande LED SMD — 24V, cuttable every 41.7mm, 8mm FPCB width, 2835 LEDs, 120 LEDs/m, IP20/IP54/IP65/IP66/IP67/IP68

LED Type: 2835 · LED Density: 120 · CRI: Ra≥90 · Voltage: 24V · Power: 3~35W · Cutting Unit: 41.67mm · PCB Width: 8 · Copper Foil: 3oz · Circuit Type: CC · IP Rating: IP20/IP54/IP65/IP66/IP67/IP68

10162 — 2835 · 180 LEDs/m · 24V

10162 Bande LED SMD — 24V, cuttable every 50mm, 10mm FPCB width, 2835 LEDs, 180 LEDs/m, IP20

LED Type: 2835 · LED Density: 180 LEDs/m · Voltage: DC 24V · Power: 2.4~28.8W · Cutting Unit: 9LEDs/50mm · PCB Width: 10mm · Copper Foil: 3oz · Circuit Type: C.V. · IP Rating: IP20

4273 — 2835 · 60 LEDs/m · 24V

4273 Bande LED SMD — 24V, cuttable every 100mm, 10mm FPCB width, 2835 LEDs, 60 LEDs/m, IP20

LED Type: 2835 · LED Density: 60 LEDs/m · Voltage: 24V · Cutting Unit: 6LEDs/100mm · PCB Width: 10mm · Copper Foil: 3oz · Circuit Type: C.V. · IP Rating: IP20

16829-N — 2020 · 280 LEDs/m · 24V

16829-N Bande LED SMD — 24V, cuttable every 25mm, 10mm FPCB width, 2020 LEDs, 280 LEDs/m, IP20/IP65/IP67/IP68

LED Type: 2020 · LED Density: 280 · Voltage: 24V · Power: 14.4 W/m · Cutting Unit: 7LEDs/25mm · PCB Width: 10 · Copper Foil: 3oz · Circuit Type: CV · IP Rating: IP20/IP65/IP67/IP68

3493 — 2835 · 240 LEDs/m · 24V

3493 Bande LED SMD — 24V, cuttable every 33.3mm, 10mm FPCB width, 2835 LEDs, 240 LEDs/m, IP20

LED Type: 2835 · LED Density: 240 LEDs/m · Voltage: 24V · Power: 3.6~24W · Cutting Unit: 8LEDs/33.33mm · PCB Width: 10mm · Copper Foil: 3oz · Circuit Type: C.V. · IP Rating: IP20

5267-FV — 2835 · 128 LEDs/m · 24V

5267-FV Bande LED SMD — 24V, cuttable every 62.5mm, 5mm FPCB width, 2835 LEDs, 128 LEDs/m, IP20/IP65/IP66/IP67/IP68

LED Type: 2835 · LED Density: 128 · CRI: Ra≥97 (Spectre Complet) · Voltage: DC24V · Power: 2~14.4W · Cutting Unit: 8LEDs/62.5mm · PCB Width: 5 · Copper Foil: 3oz · Circuit Type: CV · IP Rating: IP20/IP65/IP66/IP67/IP68

17353 — 2216 · 240 LEDs/m · 24V

17353 Bande LED SMD — 24V, cuttable every 50mm, 8mm FPCB width, 2216 LEDs, 240 LEDs/m, IP20

LED Type: 2216 · LED Density: 240 LEDs/m · CRI: Ra≥90 · Voltage: 24V · Power: 12~19.2W · Cutting Unit: 12LEDs/50mm · PCB Width: 8 · Copper Foil: 3oz · Circuit Type: C.V. · IP Rating: IP20

16029 — 5050 · 72 LEDs/m · 24V

16029 Bande LED SMD — 24V, cuttable every 83.3mm, 10mm FPCB width, 5050 LEDs, 72 LEDs/m, IP20/IP65/IP67/IP68

LED Type: 5050 · LED Density: 72 · Voltage: 24V · Power: 3~18W · Cutting Unit: 6 LED/83.333mm · PCB Width: 10 · Copper Foil: 3oz · Circuit Type: CC · IP Rating: IP20/IP65/IP67/IP68

13439 — 2216 · 300 LEDs/m · 24V

13439 Bande LED SMD — 24V, cuttable every 20mm, 6mm FPCB width, 2216 LEDs, 300 LEDs/m, 2700–6500K

LED Type: 2216 · LED Density: 300LEDs/m · CCT: 2700–6500K · CRI: Ra≥90 · Voltage: 24V · Power: 4~14.4W · Cutting Unit: 6LEDs/20mm · PCB Width: 6 · Copper Foil: 3oz · Circuit Type: C.C. · IP Rating: IP20/IP65/IP67/IP68

5325 — 5630 · 238 LEDs/m · 24V

5325 Bande LED SMD — 24V, cuttable every 29.4mm, 12mm FPCB width, 5630 LEDs, 238 LEDs/m, 2700-6500

LED Type: 5630 · LED Density: 238 · CCT: 2700-6500 · CRI: Ra≥80 · Voltage: 24V · Cutting Unit: 7LEDs/29.41mm · PCB Width: 12 · Copper Foil: 2 oz · Circuit Type: CV · IP Rating: IP20/IP65/IP67/IP68

6942 — 2216 · 224 LEDs/m · 24V

6942 Bande LED SMD — 24V, cuttable every 62.5mm, 10mm FPCB width, 2216 LEDs, 224 LEDs/m, IP20

LED Type: 2216 · LED Density: 224 · Voltage: 24V · Power: 7.7~24W · Cutting Unit: 14LEDs/62.5mm · PCB Width: 10mm · Copper Foil: 2oz · Circuit Type: C.C. · IP Rating: IP20

5462 — 2835 · 168 LEDs/m · 24V

5462 Bande LED SMD — 24V, cuttable every 83.3mm, 12mm FPCB width, 2835 LEDs, 168 LEDs/m, IP20

LED Type: 2835 · LED Density: 168 LEDs/m · Voltage: 24V · Power: 5.8~28.8W · Cutting Unit: 14LEDs/83.33mm · PCB Width: 12mm · Copper Foil: 3oz · Circuit Type: C.C. · IP Rating: IP20

4490 — 2835 · 112 LEDs/m · 24V

4490 Bande LED SMD — 24V, cuttable every 62.5mm, 10mm FPCB width, 2835 LEDs, 112 LEDs/m, IP20

LED Type: 2835 · LED Density: 112 LEDs/m · Voltage: 24V · Power: 3.8~23W · Cutting Unit: 7LEDs/62.5mm · PCB Width: 10mm · Copper Foil: 3oz · Circuit Type: CC · IP Rating: IP20

2176 — 2835 · 120 LEDs/m · 24V

2176 Bande LED SMD — 24V, cuttable every 50mm, 10mm FPCB width, 2835 LEDs, 120 LEDs/m, IP20

LED Type: 2835 · LED Density: 120 LEDs/m · Voltage: DC 24V · Power: 2.4~24W · Cutting Unit: 6 LED/50mm · PCB Width: 10mm · Copper Foil: 3 oz · Circuit Type: C.V. · IP Rating: IP20

2664 — 3528 · 120 LEDs/m · 24V

2664 Bande LED SMD — 24V, cuttable every 50mm, 5mm FPCB width, 3528 LEDs, 120 LEDs/m, 2700-6500

LED Type: 3528 · LED Density: 120 · CCT: 2700-6500 · CRI: Ra≥80 · Voltage: 24V · Power: 2.4~14.4W · Cutting Unit: 6 LED/50mm · PCB Width: 5mm · Copper Foil: 3 oz · Circuit Type: CV · IP Rating: IP20/IP65/IP67/IP68

11474 — 2216 · 180 LEDs/m · 24V

11474 Bande LED SMD — 24V, cuttable every Découpe arbitraire, 6mm FPCB width, 2216 LEDs, 180 LEDs/m, IP20

LED Type: 2216 · LED Density: 180LEDs/m · Voltage: 24V · Power: 4~19.2W · Cutting Unit: Découpe arbitraire · PCB Width: 6 · Copper Foil: 2oz · Circuit Type: C.V. · IP Rating: IP20

3665 — 5050 · 60 LEDs/m · 24V

3665 Bande LED SMD — 24V, cuttable every 100mm, 12mm FPCB width, 5050 LEDs, 60 LEDs/m, IP20

LED Type: 5050 · LED Density: 60 · Voltage: 24V · Power: 3.6~14.4W · Cutting Unit: 6LEDs/100mm · PCB Width: 12 · Copper Foil: 3oz · Circuit Type: CC · IP Rating: IP20

6803 — 2835 · 256 LEDs/m · 24V

6803 Bande LED SMD — 24V, cuttable every 62.5mm, 12mm FPCB width, 2835 LEDs, 256 LEDs/m

LED Type: 2835 · LED Density: 256 · Voltage: DC24V · Power: 3.8~30W · Cutting Unit: 16LEDs/62.5mm · PCB Width: 12mm · Copper Foil: 3oz · Circuit Type: CV

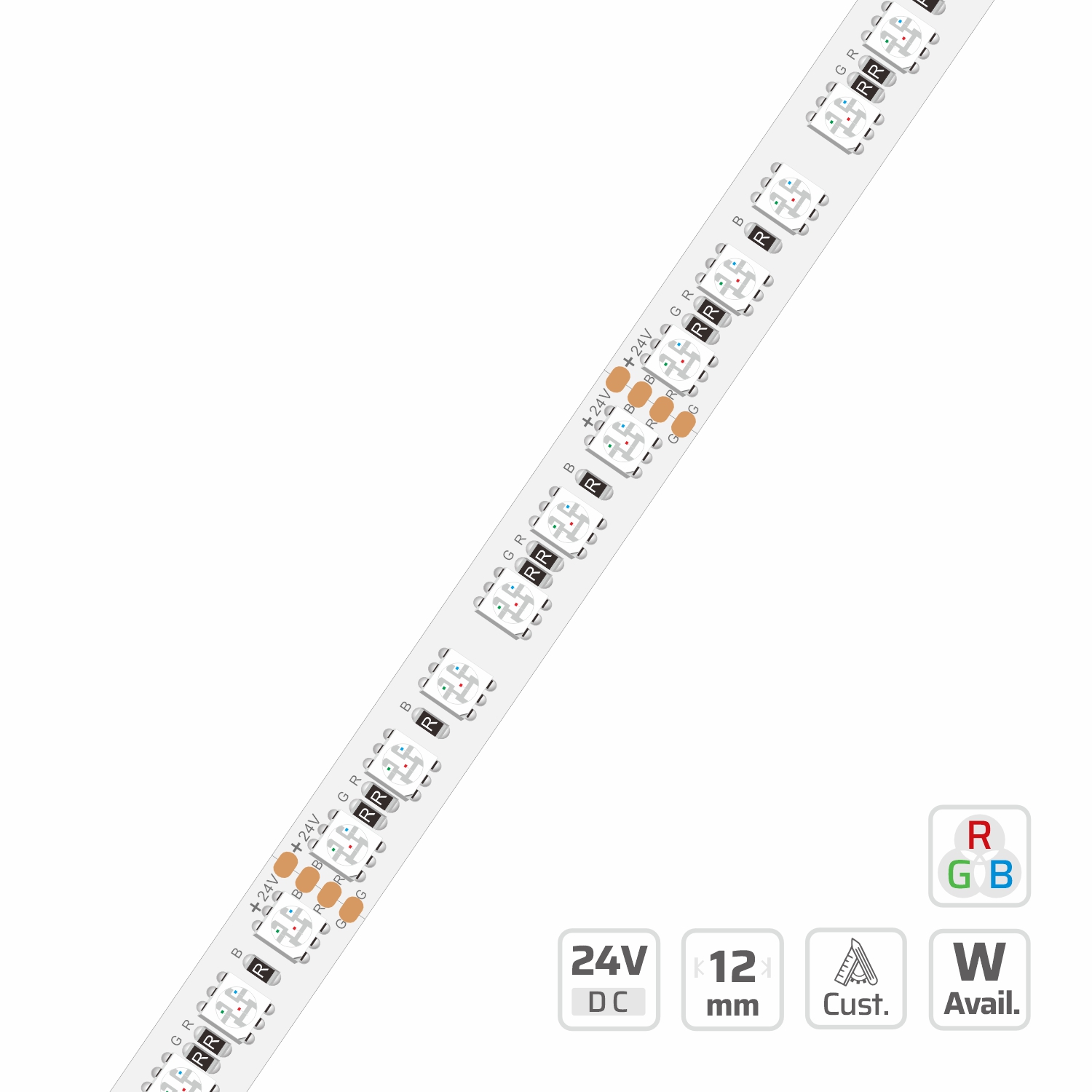

2496 — 5050 · 96 LEDs/m · 24V

2496 Bande LED SMD — 24V, cuttable every 62.5mm, 12mm FPCB width, 5050 LEDs, 96 LEDs/m, IP20/IP65/IP67/IP68

LED Type: 5050 · LED Density: 96 · Voltage: 24V · Power: 5.8~23W · Cutting Unit: 6 LED/62.5mm · PCB Width: 12 · Copper Foil: 2oz · Circuit Type: CV · IP Rating: IP20/IP65/IP67/IP68

2175 — 3528 · 120 LEDs/m · 24V

2175 Bande LED SMD — 24V, cuttable every 50mm, 8mm FPCB width, 3528 LEDs, 120 LEDs/m, 2700-6500

LED Type: 3528 · LED Density: 120 · CCT: 2700-6500 · CRI: Ra≥80 · Voltage: 24V · Power: 2.4~14.4W · Cutting Unit: 6 LED/50mm · PCB Width: 8mm · Copper Foil: 3 oz · Circuit Type: CV · IP Rating: IP20/IP65/IP67/IP68

16707 — 2835 · 480 LEDs/m · 24V

16707 Bande LED SMD — 24V, cuttable every 33.3mm, 18mm FPCB width, 2835 LEDs, 480 LEDs/m, IP20/IP66

LED Type: 2835 · LED Density: 480 LEDs/m · CRI: Ra≥90 · Voltage: 24V · Cutting Unit: 16LEDs/33.333mm · PCB Width: 18 · Copper Foil: 3oz · Circuit Type: C.V. · IP Rating: IP20/IP66

3015-B — 2835 · 128 LEDs/m · 24V

3015-B Bande LED SMD — 24V, cuttable every 62.5mm, 10mm FPCB width, 2835 LEDs, 128 LEDs/m, IP20/IP54/IP65/IP66/IP67/IP68

LED Type: 2835 · LED Density: 128 · CRI: Ra≥90 · Voltage: 24V · Power: 2~23W · Cutting Unit: 8LEDs/62.5mm · PCB Width: 10 · Copper Foil: 3oz · Circuit Type: CV · IP Rating: IP20/IP54/IP65/IP66/IP67/IP68

5991-PU — 2110 · 280 LEDs/m · 24V

5991-PU Bande LED SMD — 24V, cuttable every 25mm, 12mm FPCB width, 2110 LEDs, 280 LEDs/m, 1800–6500K

LED Type: 2110 · LED Density: 280 LEDs/m · CCT: 1800–6500K · CRI: Ra≥90 · Voltage: 24V · Cutting Unit: 7LEDs/25mm · PCB Width: 12mm · Copper Foil: 3oz · Circuit Type: C.V. · IP Rating: IP68

9677-PU — 2110 · 350 LEDs/m · 24V

9677-PU Bande LED SMD — 24V, cuttable every 20mm, 4mm FPCB width, 2110 LEDs, 350 LEDs/m, IP68

LED Type: 2110 · LED Density: 350 LEDs/m · CRI: Ra≥90 / Ra≥95 · Voltage: 24V · Power: 3~12W · Cutting Unit: 7LEDs/20mm · PCB Width: 4mm · Copper Foil: 3oz · Circuit Type: C.V. · IP Rating: IP68

2176-FV — 2835 · 120 LEDs/m · 24V

2176-FV Bande LED SMD — 24V, cuttable every 50mm, 10mm FPCB width, 2835 LEDs, 120 LEDs/m, IP20/IP54/IP65/IP66/IP67/IP68

LED Type: 2835 · LED Density: 120 · CRI: Ra≥97 (Spectre Complet) · Voltage: DC24V · Power: 2.4~24W · Cutting Unit: 6 LED/50mm · PCB Width: 10 · Copper Foil: 3oz · Circuit Type: CV · IP Rating: IP20/IP54/IP65/IP66/IP67/IP68

2351 — 5630 · 240 LEDs/m · 24V

2351 Bande LED SMD — 24V, cuttable every 50mm, 15mm FPCB width, 5630 LEDs, 240 LEDs/m, 2700–6500K

LED Type: 5630 · LED Density: 240 · CCT: 2700–6500K · CRI: Ra≥80 · Voltage: 24V · Power: 4~28.8W · Cutting Unit: 12LEDs/50mm · PCB Width: 15 · Copper Foil: 3 oz · Circuit Type: CV · IP Rating: IP20/IP65/IP67/IP68

2432 — 5050 · 72 LEDs/m · 24V

2432 Bande LED SMD — 24V, cuttable every 83.3mm, 12mm FPCB width, 5050 LEDs, 72 LEDs/m, 7000K

LED Type: 5050 · LED Density: 72 · CCT: 7000K · CRI: Ra≥80 · Voltage: 24V · Power: 5.8~23W · Cutting Unit: 6 LED/83.33mm · PCB Width: 12 · Copper Foil: 2oz · Circuit Type: CV · IP Rating: IP20/IP65/IP67/IP68

5326-PU — 5050 · 60 LEDs/m · 24V

5326-PU Bande LED SMD — 24V, cuttable every 100mm, 12mm FPCB width, 5050 LEDs, 60 LEDs/m, IP20/IP65/IP67/IP68

LED Type: 5050 · LED Density: 60 · CRI: Ra≥80 · Voltage: 24V · Power: 5~19.2W · Cutting Unit: 6LEDs/100mm · PCB Width: 12 · Copper Foil: 3oz · Circuit Type: CV · IP Rating: IP20/IP65/IP67/IP68

11056 — 2835 · 140 LEDs/m · 24V

11056 Bande LED SMD — 24V, cuttable every 50mm, 8mm FPCB width, 2835 LEDs, 140 LEDs/m, IP20

LED Type: 2835 · LED Density: 140LEDs/m · Voltage: DC 24V · Cutting Unit: 7LEDs/50mm · PCB Width: 8mm · Copper Foil: 3oz · Circuit Type: C.C. · IP Rating: IP20

2310 — 2835 · 112 LEDs/m · 24V

2310 Bande LED SMD — 24V, cuttable every 125mm, 10mm FPCB width, 2835 LEDs, 112 LEDs/m, IP20

LED Type: 2835 · LED Density: 112 LEDs/m · Voltage: DC 24V · Power: 12~23W · Cutting Unit: 14LEDs/125mm · PCB Width: 10mm · Copper Foil: 3oz · Circuit Type: CV · IP Rating: IP20

3834 — 5630 · 60 LEDs/m · 24V

3834 Bande LED SMD — 24V, cuttable every 100mm, 10mm FPCB width, 5630 LEDs, 60 LEDs/m, 2700-6500

LED Type: 5630 · LED Density: 60 · CCT: 2700-6500 · CRI: Ra≥80 · Voltage: 24V · Power: 2~24W · Cutting Unit: 6LEDs/100mm · PCB Width: 10 · Copper Foil: 3 oz · Circuit Type: CV · IP Rating: IP20

14158-N — 2216 · 300 LEDs/m · 24V

14158-N Bande LED SMD — 24V, cuttable every 6.7mm, 10mm FPCB width, 2216 LEDs, 300 LEDs/m, 1800–6500K

LED Type: 2216 · LED Density: 300 LEDs/m · CCT: 1800–6500K · CRI: Ra≥90 · Voltage: 24V · Power: 5~28.8W · Cutting Unit: 2LEDs/6.667mm · PCB Width: 10 · Copper Foil: 3oz · Circuit Type: C.V. · IP Rating: IP20/IP65/IP67/IP68

16706 — 2835 · 720 LEDs/m · 24V

16706 Bande LED SMD — 24V, cuttable every 33.3mm, 36mm FPCB width, 2835 LEDs, 720 LEDs/m, IP20/IP66

LED Type: 2835 · LED Density: 720 LEDs/m · CRI: Ra≥90 · Voltage: 24V · Cutting Unit: 24LEDs/33.333mm · PCB Width: 36mm · Copper Foil: 3oz · Circuit Type: C.V. · IP Rating: IP20/IP66

11161 — 2835 · 64 LEDs/m · 24V

11161 Bande LED SMD — 24V, cuttable every 125mm, 8mm FPCB width, 2835 LEDs, 64 LEDs/m, IP20

LED Type: 2835 · LED Density: 64LEDs/m · Voltage: DC 24V · Power: 2~12W · Cutting Unit: 8LEDs/125mm · PCB Width: 8 mm · Copper Foil: 3oz · Circuit Type: CV (à base de résistance) · IP Rating: IP20

16474 — 2835 · 240 LEDs/m · 24V

16474 Bande LED SMD — 24V, cuttable every 50mm, 10mm FPCB width, 2835 LEDs, 240 LEDs/m, IP20

LED Type: 2835 · LED Density: 240 · Voltage: 24V · Power: 12~24W · Cutting Unit: 12LEDs/50mm · PCB Width: 10 · Copper Foil: 3oz · Circuit Type: CV · IP Rating: IP20

7828 — 5050 · 60 LEDs/m · 24V

7828 Bande LED SMD — 24V, cuttable every 166.7mm, 10mm FPCB width, 5050 LEDs, 60 LEDs/m, 3000K

LED Type: 5050 · LED Density: 60 · CCT: 3000K · CRI: Ra≥80 · Voltage: 24V · Power: 4.3~17.2W · Cutting Unit: 10LEDs/166.66mm · PCB Width: 10 · Copper Foil: 2oz · Circuit Type: CV · IP Rating: IP20/IP65/IP67/IP68

7923-PU — 2835 · 128 LEDs/m · 24V

7923-PU Bande LED SMD — 24V, cuttable every 62.5mm, 10mm FPCB width, 2835 LEDs, 128 LEDs/m, 1800-6500

LED Type: 2835 · LED Density: 128 · CCT: 1800-6500 · CRI: Ra≥80 , Ra≥90 , Ra≥95 , FS · Voltage: 24V · Cutting Unit: 8LEDs/62.5mm · PCB Width: 10mm · Copper Foil: 3 oz · Circuit Type: CC · IP Rating: IP68PU

3399U — 3838 · 120 LEDs/m · 24V

3399U Bande LED SMD — 24V, cuttable every 50mm, 8mm FPCB width, 3838 LEDs, 120 LEDs/m, IP20

LED Type: 3838 · LED Density: 120 · Voltage: 24V · Power: 7.2~19.2W · Cutting Unit: 6 LED/50mm · PCB Width: 8 · Copper Foil: 2oz · Circuit Type: CV · IP Rating: IP20

64133 — 2835 · 120 LEDs/m · 24V

64133 Bande LED SMD — 24V, cuttable every 50mm, 8mm FPCB width, 2835 LEDs, 120 LEDs/m, IP20

LED Type: 2835 · LED Density: 120LEDs/m · Voltage: DC 24V · Power: 2.4~19.2W · Cutting Unit: 6 LED/50mm · PCB Width: 8 mm · Copper Foil: 4oz · Circuit Type: C.C. · IP Rating: IP20

5932 — 2835 · 112 LEDs/m · 24V

5932 Bande LED SMD — 24V, cuttable every 71.4mm, 10mm FPCB width, 2835 LEDs, 112 LEDs/m, IP20

LED Type: 2835 · LED Density: 112 LEDs/m · Voltage: DC 24V · Power: 3.4~20W · Cutting Unit: 8LEDs/71.4mm · PCB Width: 10 · Copper Foil: 3oz · Circuit Type: C.C. · IP Rating: IP20

2518 — 2835 · 140 LEDs/m · 24V

2518 Bande LED SMD — 24V, cuttable every 50mm, 10mm FPCB width, 2835 LEDs, 140 LEDs/m, IP20

LED Type: 2835 · LED Density: 140 LEDs/m · Voltage: 24V · Power: 4.8~24W · Cutting Unit: 7LEDs/50mm · PCB Width: 10mm · Copper Foil: 3oz · Circuit Type: C.V. · IP Rating: IP20

11153-N — 2216 · 256 LEDs/m · 24V

11153-N Bande LED SMD — 24V, cuttable every 31.3mm, 8mm FPCB width, 2216 LEDs, 256 LEDs/m, IP20

LED Type: 2216 · LED Density: 256 LEDs/m · Voltage: 24V · Power: 3.8~15W · Cutting Unit: 8LEDs/31.25mm · PCB Width: 8 · Copper Foil: 2oz · Circuit Type: C.V. · IP Rating: IP20

2311 — 3528 · 120 LEDs/m · 24V

2311 Bande LED SMD — 24V, cuttable every 100mm, 10mm FPCB width, 3528 LEDs, 120 LEDs/m, 2700–6500K

LED Type: 3528 · LED Density: 120 · CCT: 2700–6500K · CRI: Ra≥80 · Voltage: 24V · Power: 4.8~9.6W · Cutting Unit: 12LEDs/100mm · PCB Width: 10 · Copper Foil: 3oz · Circuit Type: CV · IP Rating: IP20/IP65/IP67/IP68

4493 — 2835 · 64 LEDs/m · 24V

4493 Bande LED SMD — 24V, cuttable every 125mm, 10mm FPCB width, 2835 LEDs, 64 LEDs/m, IP20

LED Type: 2835 · LED Density: 64 LEDs/m · Voltage: 24V · Cutting Unit: 8LEDs/125mm · PCB Width: 10mm · Copper Foil: 3oz · Circuit Type: C.C. · IP Rating: IP20

4274 — 2835 · 60 LEDs/m · 24V

4274 Bande LED SMD — 24V, cuttable every 100mm, 12mm FPCB width, 2835 LEDs, 60 LEDs/m, IP20

LED Type: 2835 · LED Density: 60LEDs/m · Voltage: 24V · Power: 2.4~14.4W · Cutting Unit: 6LEDs/100mm · PCB Width: 12mm · Copper Foil: 3oz · Circuit Type: C.C. · IP Rating: IP20

2309-FV — 2835 · 240 LEDs/m · 24V

2309-FV Bande LED SMD — 24V, cuttable every 25mm, 10mm FPCB width, 2835 LEDs, 240 LEDs/m, IP20

LED Type: 2835 · LED Density: 240 · Voltage: DC24V · Power: 4.8~24W · Cutting Unit: 6LEDs/25mm · PCB Width: 10 · Copper Foil: 3oz · Circuit Type: CV · IP Rating: IP20

12V Bande LED SMD Models (4)

11014 — 2835 · 30 LEDs/m · 12V

11014 Bande LED SMD — 12V, cuttable every 100mm, 8mm FPCB width, 2835 LEDs, 30 LEDs/m, IP20

LED Type: 2835 · LED Density: 30LEDs/m · Voltage: DC 12V · Cutting Unit: 3LEDs/100mm · PCB Width: 8 mm · Copper Foil: 3oz · Circuit Type: C.V. · IP Rating: IP20

2714 — 3528 · 240 LEDs/m · 12V

2714 Bande LED SMD — 12V, cuttable every 12.5mm, 10mm FPCB width, 3528 LEDs, 240 LEDs/m, 2700-6500

LED Type: 3528 · LED Density: 240 · CCT: 2700-6500 · CRI: Ra≥95 · Voltage: 12V · Power: 4.8~24W · Cutting Unit: 3LEDs/12.5mm · PCB Width: 10mm · Copper Foil: 3 oz · Circuit Type: CV · IP Rating: IP20/IP65/IP67/IP68

10181 — 2835 · 80 LEDs/m · 12V

10181 Bande LED SMD — 12V, cuttable every 50mm, 8mm FPCB width, 2835 LEDs, 80 LEDs/m, IP20

LED Type: 2835 · LED Density: 80 LEDs/m · Voltage: DC 12V · Power: 2.4~14.4W · Cutting Unit: 4LEDs/50mm · PCB Width: 8mm · Copper Foil: 3oz · Circuit Type: CC · IP Rating: IP20

2269 — 3528 · 120 LEDs/m · 12V

2269 Bande LED SMD — 12V, cuttable every 25mm, 10mm FPCB width, 3528 LEDs, 120 LEDs/m, IP20

LED Type: 3528 · LED Density: 120 LEDs/m · Voltage: 12V · Power: 2.4~14.4W · Cutting Unit: 3LEDs/25mm · PCB Width: 10mm · Copper Foil: 3 oz · Circuit Type: C.V. · IP Rating: IP20

Other Bande LED SMD series

Qu'est-ce qu'une bande LED SMD ?

Un ruban LED SMD est un circuit flexible rempli de boîtiers LED montés en surface tels que 2835, 2216, 3014 ou 5050, espacés à un pas de LED défini et coupés à intervalles fixes. C'est le format linéaire polyvalent utilisé lorsque le pas défini, le boîtier standard et le large choix de couleurs comptent plus qu'une surface émettrice entièrement continue.

Chaque taille de boîtier présente des compromis différents entre le flux par mètre, la largeur du ruban et le comportement thermique. Construits sur les circuits roll-to-roll électroplaqués de DENO, les mêmes formats de boîtiers familiers transportent un cuivre plus épais et plus pur, ce qui réduit les pertes résistives le long du parcours par rapport aux circuits en cuivre laminé mince.

Packages2216, 2835, 3014, 3528, 5050, 5630 et formats apparentés
CircuitCuivre électrolytique jusqu’à 105 um, pureté de 99.9%
TensionDC 12 V / 24 V / 36 V / 48 V
Rendu des couleursVariantes Ra 80, Ra 90+ et à spectre complet avec CRI élevé
Modes de couleurMonochrome, CCT réglable, variation vers le blanc chaud, RGB, RGBW, adressable

Applications typiques

  • Éclairage linéaire architectural et commercial général
  • Intégration dans la signalétique, les étagères et le mobilier
  • Projets de rénovation spécifiés autour de tailles de boîtiers établies

La protection contre l'infiltration, la longueur de fonctionnement et la compatibilité de gradation varient selon le modèle, le driver et le contrôleur utilisés ; ils sont spécifiés par produit plutôt que par type de boîtier.
